Scuba diving backplates function as the primary life-support chassis for underwater exploration. They hold the cylinder, inflation wing, and harness together under extreme physical stress. A failure in design or manufacturing directly impacts diver safety and ruins brand reputation. Diving equipment brands face a saturated market where standing out requires exact machining precision, weight optimization, and universal harness compatibility. Sourcing a reliable manufacturing partner means dealing with opaque supply chains, inconsistent material grades, and variable machining tolerances.
We provide a technical evaluation framework for auditing manufacturing partners. This guide focuses on material science, machining precision, quality control, universal compatibility, and supply chain stability. You must verify these metrics before committing to a production run. Evaluating these core areas guarantees your final product meets the rigorous demands of technical and recreational divers.
Material integrity dictates market fit: Choosing between 316L stainless steel, marine-grade aluminum, or carbon fiber determines whether the product serves cold-water technical divers or the warm-water travel market.
Edge finishing is a non-negotiable safety metric: Precision laser cutting must be paired with exact chamfering to prevent harness webbing abrasion under heavy loads and facilitate safe pre-dive visual inspections.
Universal compatibility drives sales: Designing plates with industry-standard spacing ensures end-users can easily pair gear with aftermarket wings and receive service at local dive shops.
Supplier vetting requires auditing QA processes: A viable custom diving backplate supplier must provide transparent batch testing, material certifications, and verifiable prototyping capabilities.
Scalability hinges on clear OEM terms: Brands must align Minimum Order Quantities (MOQs), tooling costs, and Intellectual Property (IP) protection before initiating full-scale production.
Technical diving environments demand zero-failure rates. The backplate serves as the rigid foundation for the entire buoyancy compensator system. It anchors the diving cylinder, the inflation wing, and the harness webbing to the diver. Any structural compromise directly threatens life support. Brands must establish strict success criteria when sourcing OEM diving equipment parts. You cannot accept standard commercial hardware tolerances for life-support applications. Every slot, hole, and bend must meet exact engineering specifications.
Design requirements shift based on your target end-user. Beginners transitioning to backplate and wing setups often need adjustable harness slots. These slots allow quick sizing changes without rethreading the entire harness. Hardcore technical divers prefer rigid, continuous webbing slots. They demand absolute stability over adjustability. Your product design must reflect the specific needs of these distinct diver profiles. A one-size-fits-all approach often fails in the technical diving market.
Universal compatibility drives market acceptance. You must adhere to industry-standard grommet spacing. This is exactly 11 inches (279mm) on center. Standard spacing ensures your plates work seamlessly with major aftermarket wings from established brands. Divers expect to mix and match gear. They also need the ability to service their equipment at local dive shops worldwide. Proprietary spacing isolates your product and frustrates end-users who want modularity.
Brands compete fiercely on specific design geometries. You can differentiate through skeletonized plates designed for air travel. You might offer extended slots for complex dual-tank setups. Custom anodized colors also provide strong visual differentiation. However, these aesthetic and functional modifications must never compromise structural integrity. You must also ensure your manufacturer understands CE certification standards for diving apparatus. Regulatory compliance is a mandatory baseline for European and global distribution.
To ensure your design meets field requirements, implement these specific checks during the prototyping phase:
Mount a fully inflated wing to verify the plate does not pinch the bladder material against the cylinder.
Thread standard 2-inch (51mm) stiff resin-coated webbing through all slots to check for binding or excessive friction.
Attach a heavily weighted twin-cylinder setup and measure for any flex across the vertical axis of the plate.
Verify that standard single-tank adapters align perfectly with the pre-cut 5/16-inch (8mm) mounting holes.
Test the placement of lower D-ring attachment points to ensure they do not interfere with the diver's hip movement.
Cold-water divers rely on heavy equipment. They wear thick neoprene or trilaminate drysuits that require significant weight to achieve neutral buoyancy. A custom metal diving plate made from 316L stainless steel provides ideal negative buoyancy. The molybdenum content in 316L offers superior resistance to saltwater corrosion and pitting. Standard 304 stainless steel will rust quickly in marine environments and must be avoided. You must verify the exact alloy composition through material test reports before accepting any shipment.
Titanium offers an exceptional strength-to-weight ratio. It is virtually immune to saltwater corrosion. However, titanium presents significant manufacturing challenges. It requires specialized machining tools and inert gas environments for any welding or high-heat processing. The raw material is highly expensive. Titanium backplates cater exclusively to a niche, premium market segment willing to pay for ultimate durability without the weight penalty of steel.

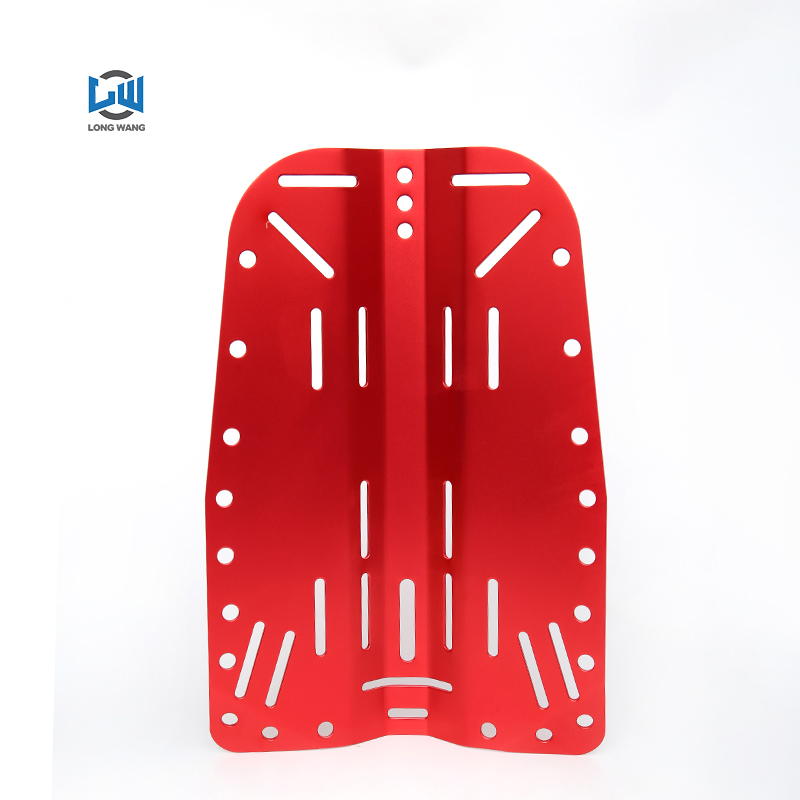

Warm-water travelers demand lightweight gear. Luggage weight restrictions drive this market segment. An aluminum laser cut backplate is the industry standard for travel setups. You must specify 6061 or 7075 marine-grade aluminum. These alloys provide the necessary tensile strength while keeping the plate under two pounds. 6061 offers excellent workability for complex bends, while 7075 provides higher yield strength for heavy-duty travel rigs.
Surface protection is mandatory for aluminum plates. You must specify MIL-A-8625 Type III Class 2 hard-coat anodizing. Standard decorative anodizing is too thin and will scratch off during the first dive. Saltwater acts as an electrolyte. When stainless steel bolt snaps touch bare aluminum, galvanic corrosion rapidly destroys the softer metal. A thick, mil-spec hard coat prevents this destructive chemical reaction and extends the lifespan of the gear.
Carbon fiber backplates dominate the ultra-light luggage market. They offer a premium alternative to aluminum. Carbon fiber composites provide incredible structural rigidity at a fraction of the weight of metal. This material appeals to traveling divers who want high-tech aesthetics and absolute minimal weight. The neutral buoyancy of carbon fiber also helps divers fine-tune their trim in the water without adding unnecessary mass to their upper back.
Manufacturing carbon fiber requires distinct processes. It involves precision resin infusion and autoclave curing. You cannot simply stamp or laser cut it like metal. The structural rigidity depends entirely on the directional layup of the carbon fiber mats. This complexity results in a significantly higher retail price point compared to traditional metal plates. You must partner with a facility experienced in composite manufacturing to avoid delamination issues under stress.
Material thickness directly impacts both structural rigidity and travel weight. Standard metal plates range from 3mm to 6mm in thickness. A 3mm aluminum plate is perfect for single-tank recreational diving. A 6mm steel plate is necessary for supporting heavy, steel twin-cylinder setups. You must evaluate how your chosen material handles the torsional stress of a fully loaded scuba rig during a giant stride entry.
Material Type | Standard Thickness | Buoyancy Characteristic | Primary Use Case | Corrosion Resistance |
|---|---|---|---|---|
316L Stainless Steel | 3mm - 6mm | Highly Negative (Heavy) | Cold Water / Drysuit / Twinsets | Excellent (requires passivation) |
6061/7075 Aluminum | 3mm | Slightly Negative (Light) | Warm Water / Air Travel | Good (requires Type III anodizing) |
Grade 5 Titanium | 3mm | Slightly Negative (Ultra-Light) | Premium Travel / Tech | Exceptional |
Carbon Fiber | Varied (Composite) | Neutral to Slightly Positive | Ultra-Light Travel | Immune to galvanic corrosion |

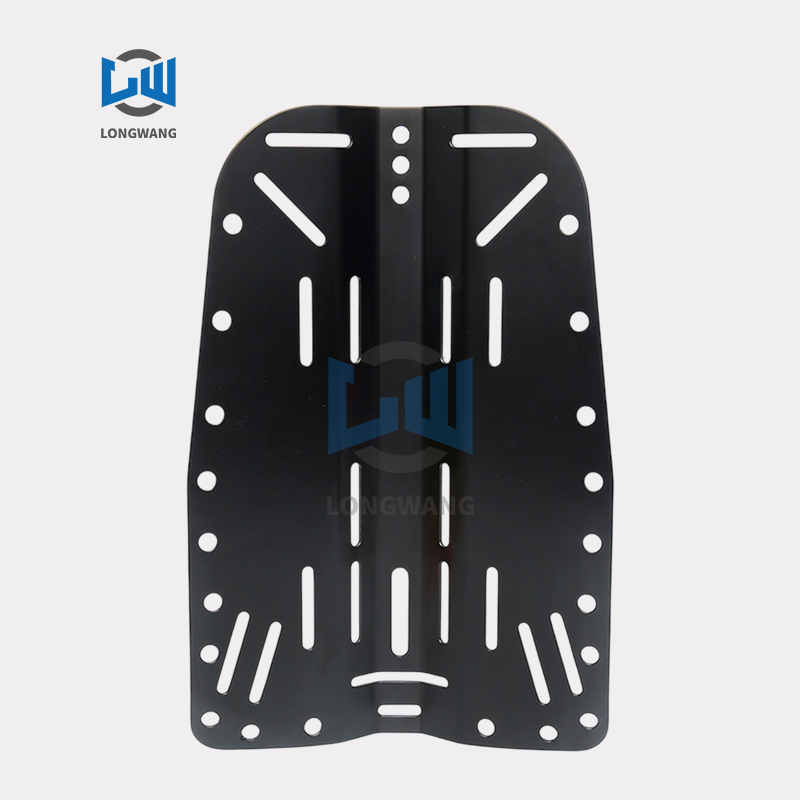

CNC laser cutting is vastly superior to traditional stamping for custom geometries. Stamping requires expensive custom tooling for every design change. Laser cutting allows for rapid iteration. You can easily adjust slot placements or add weight-reduction cutouts without incurring massive overhead. Sourcing reliable precision laser cutting parts ensures your designs translate perfectly from CAD to reality.
Tight tolerance requirements are mandatory. A tolerance of +/- 0.1mm ensures seamless integration with standard single-tank adapters and wing grommets. If the mounting holes are misaligned by even a fraction of a millimeter, the diving cylinder will sit crooked. This creates dangerous instability underwater. Precision machining eliminates these alignment issues entirely. It also ensures consistent batch-to-batch quality, meaning a plate ordered in January matches a plate ordered in December perfectly.
Poorly manufactured backplates fail at the edges. Raw laser-cut metal acts like a serrated knife against 2-inch nylon harness webbing. Under the heavy load of a scuba cylinder, a sharp slot edge will quickly saw through the webbing. This is a catastrophic safety risk. Edge finishing is a non-negotiable manufacturing step that you must verify during the auditing process.
You must mandate that the manufacturer utilizes CNC routing or vibratory tumbling. These processes achieve perfectly smooth, radiused edges on all harness slots. Smooth edges protect the webbing from abrasion. Properly finished, widened slots also allow divers to easily conduct essential pre-dive gear checks. They can spot early signs of webbing wear before entering the water. A minimum edge radius of 1.5mm is standard for life-support webbing slots.
Stainless steel requires chemical passivation after machining. The machining process leaves microscopic free iron particles on the surface. If left untreated, these iron particles will rust immediately upon saltwater exposure. Passivation uses citric or nitric acid baths according to ASTM A380 standards to remove this free iron. It promotes the formation of a protective chromium oxide layer that seals the steel against the marine environment.
Evaluate your manufacturer's finishing capabilities carefully. Ask if they perform passivation and anodizing in-house or outsource it. Outsourced finishing often creates quality control bottlenecks. In-house finishing allows the manufacturer to maintain strict oversight over chemical bath concentrations and processing times. This ensures a consistent, durable finish on every plate. Request documentation of their chemical bath maintenance schedules to verify their capabilities.
A reliable diving backplate manufacturer must demonstrate strong prototyping capabilities. Define a strict timeline for the first-article inspection. You should expect a fully finished prototype within two to four weeks. This prototype is essential for physical testing. Never proceed to mass production based solely on digital CAD renderings.
Physical testing reveals design flaws that software misses. You must test the prototype with fully assembled wings and harnesses. Mount heavily loaded twinsets to the plate. Check for excessive flex in the metal. Verify that all hardware, including bolt snaps and D-rings, clears the slots without binding. Real-world physical stress testing is the only way to validate a life-support design before putting it into the hands of consumers.
Demand comprehensive documentation from your supplier. You need Material Test Reports to verify the exact chemical composition of the steel or aluminum. Request ASTM B117 salt spray test results to validate the anodizing or passivation quality. Dimensional inspection reports prove the batch meets your specified tolerances. Without this documentation, you are guessing at the quality of your life-support equipment.
Investigate the supplier's defect resolution process. How do they handle a batch that fails dimensional inspection? A professional manufacturer will have a documented quarantine and rework procedure. They should offer transparent communication when a batch fails. Hiding defects to meet a shipping deadline is a massive red flag for life-support equipment. Establish clear penalties in your contract for unauthorized material substitutions.
Analyze the financial trade-offs of your initial order. Low-volume trial runs allow you to test market demand without massive capital risk. However, high-volume production unlocks significant per-unit discounts. You must balance your cash flow against the need for inventory depth. Discuss scalability openly with your manufacturing partner to ensure they can grow with your brand.
Consider the manufacturing method when negotiating minimums. If you require custom stamping or molding, tooling costs will be high. You will need a large order to amortize those costs. Laser cutting offers much more flexibility. The per-unit cost of laser cutting remains relatively stable even at lower volumes. This makes it ideal for iterative design phases and niche product launches where demand is unproven.
Protecting your proprietary designs is critical when working with an overseas custom diving backplate supplier. There is a real risk of manufacturers repurposing your custom slot geometries. They might offer your exact design to white-label competitors. You must establish legal safeguards before sharing any CAD files or technical drawings.
Execute strict Non-Disclosure Agreements and Non-Compete clauses. Ensure these contracts are enforceable in the manufacturer's local jurisdiction. If your design features a highly unique assembly mechanism, consider holding back certain proprietary steps. You can have the base plate manufactured overseas and complete final proprietary assembly at your local facility. This compartmentalization protects your core intellectual property.
Global metal markets are volatile. Fluctuations in aluminum and steel prices directly impact your unit economics. A sudden spike in raw material costs can erase your profit margins overnight. You must build financial contingencies into your supply chain strategy to absorb these market shocks without compromising product quality.
Work with your supplier to structure pricing lock-ins. Negotiate contracts that fix the per-unit price for a set period, typically six to twelve months. Alternatively, agree on a transparent indexing model. This model adjusts the final invoice based on the verified spot price of the raw metal at the exact time of production. Transparency prevents arbitrary price hikes and builds a sustainable manufacturing partnership.
Improper packaging destroys finished products during freight transit. A custom diving backplate is heavy and features rigid edges. If plates are stacked loosely in a box, they will rub together. This friction instantly scratches anodized aluminum surfaces and ruins the aesthetic finish. Scratched plates cannot be sold at full retail value and represent a total loss.
Detail strict packaging requirements in your purchase order. Mandate individual protective wrapping for every single plate using high-density foam. Use thick cardboard separators between units. Require secure palletization with heavy-duty strapping and shrink wrap on ISPM 15 compliant heat-treated pallets. The cost of premium packaging is negligible compared to the cost of scrapping an entire batch of scratched plates.
Finalize your CAD files with exact tolerance specifications, material grades, and edge radiusing requirements before contacting suppliers.
Request verified Material Test Reports (MTRs) and dimensional inspection logs from shortlisted manufacturers to validate their quality control processes.
Commission a small-batch prototype run and conduct real-world physical stress testing with fully assembled wings and twinsets.
Establish legally binding Non-Disclosure and Non-Compete agreements tailored to the manufacturer's local jurisdiction to protect your proprietary designs.
Negotiate a transparent raw material indexing model to protect your profit margins against global steel and aluminum price fluctuations.
A: The industry standard thickness is 3mm, which is ideal for single-tank recreational diving and travel. For technical divers using heavy twin-cylinder setups or drysuits, 6mm stainless steel plates are preferred. The thicker 6mm plate provides extra negative buoyancy and superior structural rigidity under heavy loads.
A: Raw laser-cut edges are extremely sharp and act like knives against nylon harness webbing. Under the weight of a scuba cylinder, these sharp edges will quickly saw through the webbing, causing catastrophic gear failure. CNC chamfering or vibratory tumbling ensures smooth edges, protecting the webbing and ensuring diver safety.
A: Laser cutting eliminates the need for expensive custom tooling. It allows brands to easily alter slot placements, add weight-reduction cutouts, and iterate designs rapidly. Laser cutting also provides tighter tolerances for precision parts, ensuring perfect alignment with standard single-tank adapters and wing grommets.
A: Adhering to the industry standard 11-inch grommet spacing ensures your backplate is universally compatible. It allows end-users to pair the plate with major aftermarket wings. This standard spacing also makes it significantly easier for divers to get their gear serviced or replace parts at local dive shops worldwide.
A: Realistic industry expectations for minimum order quantities typically range from 50 to 500 units. The exact number depends heavily on the manufacturing method and material. Laser-cut plates often have lower minimums, while stamped plates or custom carbon fiber molds require higher volumes to offset initial tooling costs.
A: You should always request official Material Test Reports from your manufacturer before production begins. Additionally, conduct independent third-party metallurgy tests on the first-article prototypes. Using a spectrometer ensures that genuine 316L stainless steel or marine-grade 6061/7075 aluminum is actually being used in your products.
