Over-specifying sheet metal components creates massive financial and operational risks. You face unnecessary tooling expenses and severely delayed lead times. Conversely, under-specifying leads to catastrophic part failures and assembly line rejections. Engineering and procurement teams frequently struggle to align functional design requirements with actual manufacturability realities. This challenge multiplies when dealing with stainless steel alloys. These materials exhibit high tensile strength, severe galling tendencies, and rapid work-hardening characteristics. You need a systematic, evidence-based framework to navigate these manufacturing complexities. This guide provides actionable strategies for specifying precision stainless steel stamping parts. We focus on the critical triad of manufacturing success: material grade selection, geometric tolerancing, and surface finish standards. You will learn how to optimize your designs, reduce production bottlenecks, and ensure reliable component performance on the assembly line.
Material dictates manufacturability: High tensile strength stainless steel requires specific design accommodations, such as minimum hole diameters of 2x the material thickness and strategic grain direction orientation, to prevent tool breakage and part fracturing.
Tolerance drives tooling costs: While progressive dies can achieve precision tolerances of ±0.05 mm, applying tight tolerances universally rather than strictly to critical mating surfaces exponentially increases production costs.
Surface finish standards vary by function: Specifying finishes using standardized EN/ASTM metrics or Class A/B/C cosmetic grading prevents supplier misinterpretation and unnecessary secondary processing.
Supplier capability is the ultimate constraint: The theoretical design must align with the in-process controls, tool steel selection, and progressive die expertise of your chosen OEM metal stamping service.
Defining the primary goal of the specification process requires a focus on optimizing production efficiency and maximizing lifecycle value. You must achieve these targets without compromising mechanical integrity or regulatory compliance. Every dimension, material choice, and finish requirement directly impacts tooling complexity and production speed. Engineers must balance theoretical perfection with practical manufacturability. A poorly optimized design forces manufacturers to slow down press speeds, increase lubrication, or add secondary operations. These workarounds inflate production expenses and extend delivery schedules.
The relationship between tightening specifications and manufacturing costs is strictly non-linear. As you push tolerances closer to zero, production expenses curve upward exponentially. Unnecessary precision degrades tool life rapidly. It necessitates frequent die maintenance, sharpening, and replacement. Tight tolerances also increase inspection overhead. Quality control teams must spend more time verifying dimensions using coordinate measuring machines (CMMs) rather than standard gauges. This slows down the entire approval process. You must evaluate whether a specific tolerance genuinely improves the final product functionality or merely looks impressive on a CAD drawing.
Establish a rigorous framework for separating critical-to-function (CTF) dimensions from non-critical features. CTF dimensions directly impact assembly, mating parts, or mechanical performance. Non-critical features include general outer profiles or internal clearance holes. By applying tight tolerances only to CTF areas, you optimize the manufacturing process.
Follow these steps to categorize features:
Identify mating surfaces that dictate final assembly alignment.
Isolate clearance holes where standard tolerances will suffice.
Determine which bends require strict angular control versus those that just provide structural rigidity.
Assign the widest acceptable tolerance to all non-mating outer profiles.
This targeted approach reduces scrap rates and extends the lifespan of progressive dies. It allows the stamping press to run at optimal speeds, ensuring consistent output and reliable component quality.
Selecting the correct alloy family is the foundational step in designing custom stainless steel stamping parts. The three primary categories—austenitic, ferritic, and martensitic—offer vastly different mechanical properties. You must compare their formability, yield strength, and work-hardening rates to match your application needs.
Austenitic grades, such as 301, 304, and 316, provide superior corrosion resistance and excellent formability. They are ideal for deep drawing and complex forming operations. However, austenitic stainless steel work-hardens rapidly during deformation. This requires robust tooling and precise lubrication to prevent tool wear. Ferritic grades, like 430, contain less nickel and offer distinct cost advantages. They possess lower formability than austenitic grades but do not work-harden as severely. Ferritic alloys are highly suitable for lower-stress, flat-blanking applications or simple bending operations. Martensitic grades offer high hardness and strength but very limited formability, making them rare in complex stamping.
Stainless Steel Grade | Microstructure | Yield Strength (MPa) | Formability | Work-Hardening Rate | Primary Stamping Application |
|---|---|---|---|---|---|
301 | Austenitic | ~205 | High | Very High | Spring components, high-strength structural parts |
304 | Austenitic | ~215 | Excellent | High | Deep drawn enclosures, complex brackets |
316 | Austenitic | ~205 | Good | High | Marine hardware, medical device housings |
430 | Ferritic | ~310 | Moderate | Low | Appliance panels, flat blanked washers |
410 | Martensitic | ~275 (Annealed) | Poor | Moderate | Cutlery, wear-resistant flat parts |
The high tensile strength of stainless steel significantly impacts blanking and piercing forces. Punching through a 304 stainless sheet requires substantially more press tonnage than punching through mild steel of the same thickness. This elevated force puts immense stress on the punches and die blocks. You must account for this by designing robust, thick-walled components and selecting appropriate press equipment.
Material temper and grain direction play critical roles in forming success. Stainless steel is available in various tempers, from fully annealed (softest) to full hard. Annealed material forms easily but lacks structural rigidity. Harder tempers provide strength but resist bending and are prone to cracking. You must specify that bends be oriented perpendicular or at an angle to the material's grain direction. Bending parallel to the grain almost guarantees outer-radius fracturing, especially in harder tempers.
Adhere to strict standard design rules to prevent tool failure. We strongly recommend a minimum hole diameter of 2x the material thickness for all stainless alloys. Attempting to pierce a hole smaller than the material thickness often causes the punch to snap under the extreme compressive load. If smaller holes are absolutely necessary, they typically require secondary drilling or laser cutting operations.
End-use environments dictate your final material selection. Components exposed to harsh chemicals, saltwater, or bodily fluids require specific alloy compositions. Specifying 316L stainless steel is mandatory for marine or medical applications. The addition of molybdenum in 316L provides necessary resistance to pitting and crevice corrosion in chloride environments. Standard 304 will degrade rapidly under these same conditions.
Traceability is non-negotiable in regulated industries. You must request material test reports (MTRs) from your manufacturing partner. MTRs verify the exact chemical composition and mechanical properties of the raw steel coil. They ensure heat lot consistency across multiple production runs. Maintaining these records is essential for regulatory compliance in the aerospace, automotive, and medical device sectors.
Establishing baseline expectations is necessary before finalizing your CAD models. Standard commercial sheet metal stamping tolerance generally falls around ±0.1 mm to ±0.25 mm. These tolerances are highly achievable, cost-effective, and suitable for the vast majority of structural and internal components. Pushing beyond these limits moves your project into the realm of high-precision manufacturing.
High-precision requirements can achieve tolerances as tight as ±0.05 mm. Achieving this level of accuracy requires sophisticated equipment and stringent process controls. Manufacturers must utilize heavy-duty progressive dies built with premium tool steels. They rely on exceptionally rigid press frames to eliminate deflection during the stamping stroke. Furthermore, in-process sensor controls, such as misfeed detectors and tonnage monitors, are vital for maintaining tight tolerances over high-volume production runs.
Feature Type | Standard Tolerance (mm) | Precision Tolerance (mm) | Cost Impact of Precision |
|---|---|---|---|
Hole Diameter | ±0.10 | ±0.02 | High (Requires frequent punch replacement) |
Hole Position | ±0.15 | ±0.05 | Very High (Requires complex die piloting) |
Bend Angle | ±2.0° | ±0.5° | High (Requires coining and strict springback control) |
Overall Profile | ±0.25 | ±0.10 | Moderate (Requires precise blanking stations) |

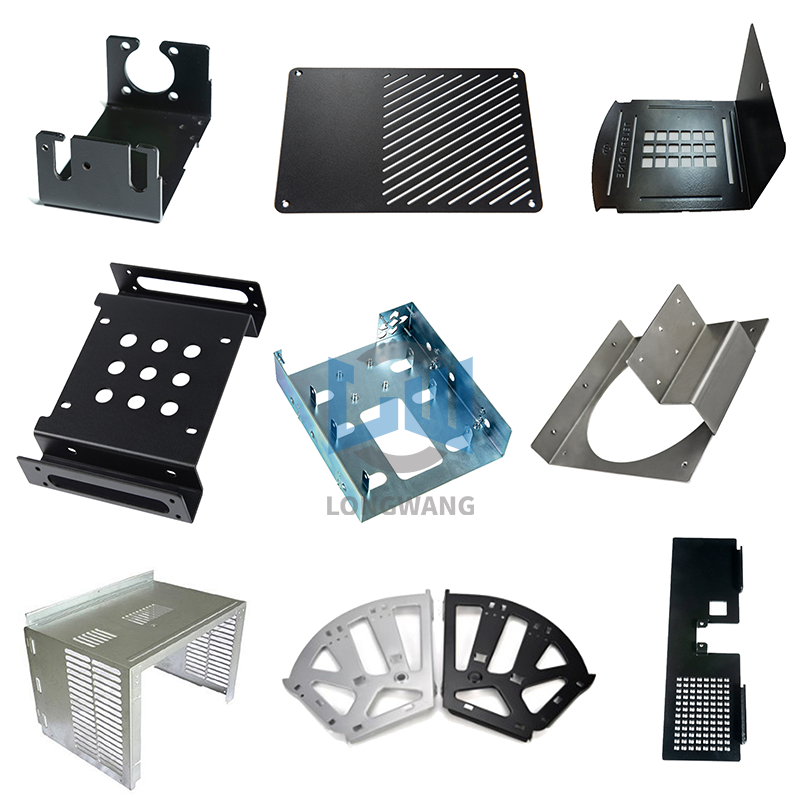

Detailing specific geometric constraints ensures manufacturability and uniform quality across all production batches. Ignoring these rules leads to distorted features, torn metal, and rejected parts. You must design with the physical limitations of the metal forming process in mind.
Instruct on spacing: Avoid placing perforations too close to edges or to each other. Maintain a minimum distance of ≥1.5x the material thickness between any hole and the part edge to prevent the web from bulging or breaking.
Instruct on bending proximity: Keep holes and slots at least 2x the material thickness away from bend radii. Placing features too close to a bend causes the hole to stretch and distort into an oval shape during forming.
Instruct on bend radii: Specify a minimum bend radius of 1x to 2x the material thickness, depending on the specific stainless grade and temper. Tight, sharp corners cause severe stress concentrations and lead to outer-radius fracturing.
Instruct on edge conditions: Understand that stamped edges will naturally have a rollover, a burnish band, a fracture zone, and a burr. Design mating parts to accommodate this standard edge profile.
Stainless steel exhibits a severe tendency to spring back after bending. Its high yield strength causes the metal to attempt to return to its original flat state once the forming pressure is released. Tooling engineers must calculate this springback angle precisely. They mitigate it by over-bending the material in the die design. Precise control of corner radii and the application of coining stations within the progressive die help set the bend permanently.
Proper die clearance is critical to minimizing burr height and maintaining strict edge tolerances. For stainless steel, the clearance between the punch and the die matrix is typically set at 8-10% of the material thickness per side. Insufficient clearance causes excessive tool wear and secondary shearing. Excessive clearance leads to large, dangerous burrs and severe edge rollover.
Specifying excessively tight angular tolerances causes significant production headaches. Stainless steel's inconsistent work-hardening rates from coil to coil mean that springback varies slightly between batches. Tight angular specs necessitate expensive secondary operations or complex, high-maintenance die adjustments. Design your assemblies to absorb minor angular variations whenever possible.
Relying on subjective descriptions like "shiny," "smooth," or "brushed" guarantees supplier misinterpretation. You must use objective, measurable standards. Utilize established frameworks such as ASTM A480 or EN 10088-2 to define your exact stainless steel stamping surface finish requirements. These standards provide specific roughness average (Ra) values and processing methods.
Familiarize yourself with common mill finishes and their appropriate functional applications. A 2B finish is a smooth, moderately reflective cold-rolled surface, ideal for deep drawing and general internal components. A No. 4 finish features a directional, brushed appearance commonly seen on kitchen appliances and architectural panels. A No. 8 finish is a highly polished, mirror-like surface used for strict hygienic environments or premium cosmetic applications. Selecting the right mill finish reduces the need for expensive post-stamping polishing.
Breaking down surface finish requirements into distinct classes helps streamline production and control expenses. Industry standards generally categorize finishes into three distinct levels based on visibility and function.
Class A: These are highly visible, focal-point surfaces. They must be entirely flawless, free of any tool marks, scratches, or blemishes. Class A finishes demand meticulous handling, protective films, and often manual polishing, representing the highest cost tier.
Class B: These surfaces are visible but not the primary focal point. Minor, uniform tool marks or slight imperfections are acceptable. Class B offers a balance between aesthetic appeal and moderate production costs.
Class C: These are internal or hidden surfaces. The primary requirement is safety and functionality. Parts are typically deburred only to remove sharp edges. This represents the lowest cost and fastest production method.
Over-specifying a Class C internal bracket to a Class A finish wastes massive amounts of resources. It forces the manufacturer to utilize stroke sanders, Timesavers, or manual polishing on surfaces no end-user will ever see. Always align the cosmetic class strictly with the part's final functional location.
Stamping inherently creates sharp edges and burrs. You must discuss edge condition specifications clearly on your drawings. Specify whether edges simply need to be broken for safe handling or if they require complete deburring. Vibratory tumbling is a highly effective, batch-processing method for removing burrs and creating a uniform, matte finish on smaller stainless steel components.
Evaluate secondary surface treatments specific to stainless steel applications:
Electropolishing: Removes microscopic peaks on the metal surface, improving corrosion resistance and preventing bacterial adhesion.
Passivation (Citric or Nitric Acid): Removes free iron particles embedded during stamping and accelerates the restoration of the protective chromium oxide layer.
Bead Blasting: Provides a uniform, non-directional matte finish that hides minor surface defects.
Address how specific finishes and passivation treatments impact downstream assembly operations. Heavy brushing or polishing compounds can leave residues that interfere with laser or spot weldability. Ensure that your specified cleaning and finishing processes leave the metal surface properly prepared for any subsequent joining techniques required in your assembly line.
In-house tool and die design is a critical capability for managing the specific challenges of stainless steel. An OEM metal stamping service that outsources its tooling loses control over essential design iterations. In-house engineers can rapidly adjust die clearances, modify bend radii, and optimize the strip layout to combat stainless steel's unique springback and work-hardening behaviors.
Detail the importance of tool steel selection during your evaluation. Stamping high-tensile stainless steel destroys standard tool steels quickly. Demand that your partner uses premium grades like D2 or solid tungsten carbide for high-wear punch and die sections. Furthermore, inquire about specialized coatings. Applying Titanium Nitride (TiN) or Titanium Carbonitride (TiCN) coatings to the punches significantly reduces friction, combats galling, and extends tool life dramatically.
Examine the necessary quality control infrastructure. A modern stamping facility must possess advanced metrology equipment. Look for coordinate measuring machines (CMMs), optical comparators, and automated vision systems capable of verifying complex geometries instantly. Furthermore, verify their systemic commitment to quality by demanding proof of active ISO 9001 or IATF 16949 certifications.
Discuss the transition from the prototype phase to mass production. A competent partner should offer soft tooling or laser cutting services for initial prototyping. Soft tooling typically utilizes laser cutting and standalone press brakes. This allows you to validate the design, test formability, and make necessary geometry adjustments without investing in expensive hard tooling. Once the design is locked, the supplier must seamlessly transition the project into hard tooling. This involves designing multi-station progressive dies capable of running at hundreds of strokes per minute for high-volume manufacturing.
Evaluate how a supplier handles the lifecycle management of progressive dies. Progressive dies represent a massive capital expenditure. You must understand who owns the tool, who is responsible for routine maintenance, and how the supplier handles major die repairs or rebuilds over a multi-year production run. A reliable partner absorbs routine maintenance into their piece-part operational flow.
Identify warning signs early during the evaluation phase to prevent disastrous partnerships. The most glaring red flag is a lack of design for manufacturability (DFM) feedback. If a stamping parts supplier accepts a complex stainless steel CAD model without suggesting any tolerance relaxations or geometric optimizations, they likely lack deep engineering expertise.
Another major warning sign is the inability to provide capability studies. Ask for historical Cp and Cpk data on similar high-tensile materials. If they cannot prove their process capability statistically, they cannot guarantee consistent quality. Finally, be wary of vague responses regarding their specific tolerance capabilities, press tonnage capacities, and die clearance strategies for stainless steel. Precision stamping requires exact mathematical answers, not estimations.
Take immediate action to optimize your current manufacturing pipeline and reduce unnecessary production expenses:
Audit your existing engineering drawings to identify and relax any over-specified, non-critical tolerances.
Standardize your surface finish callouts using exact ASTM or EN designations instead of subjective text descriptions.
Submit your most challenging CAD files to a qualified stamping engineering team for a comprehensive manufacturability assessment.
Request material test reports (MTRs) for your next production run to verify alloy compliance and heat lot consistency.
A: Stainless steel possesses a significantly higher tensile and yield strength than standard mild steel. It also work-hardens rapidly during deformation. This increased resistance requires the stamping press to exert much greater force to shear, pierce, and bend the material without stalling or damaging the equipment.
A: As a general engineering rule, the minimum hole diameter should be at least twice (2x) the material thickness. Attempting to pierce holes smaller than this ratio places extreme compressive stress on the tooling, frequently causing the steel punches to snap during the downward stroke.
A: To prevent cracking, ensure that all bend lines are oriented perpendicular or at an angle to the material's grain direction. Additionally, specify an appropriate minimum bend radius (typically 1x to 2x the material thickness) and avoid using fully hard material tempers for complex forming operations.
A: A Class A finish is for highly visible, focal-point areas and must be completely flawless, requiring careful handling and often manual polishing. A Class B finish is for visible but non-focal areas; it allows for minor, uniform tool marks and is significantly more cost-effective to produce.
A: Proper die clearance (typically 8-10% of material thickness) controls the shearing action. Correct clearance minimizes burr height, prevents excessive tool wear, and ensures a clean, straight edge profile. Incorrect clearance leads to severe edge rollover, massive burrs, and rapid degradation of the punch and die blocks.
A: Yes, if the parts will be used in corrosive, medical, or food-grade environments. The stamping process can embed free iron particles from the tooling into the stainless surface. Passivation uses acid to remove these contaminants, restoring the material's natural, corrosion-resistant chromium oxide layer.
