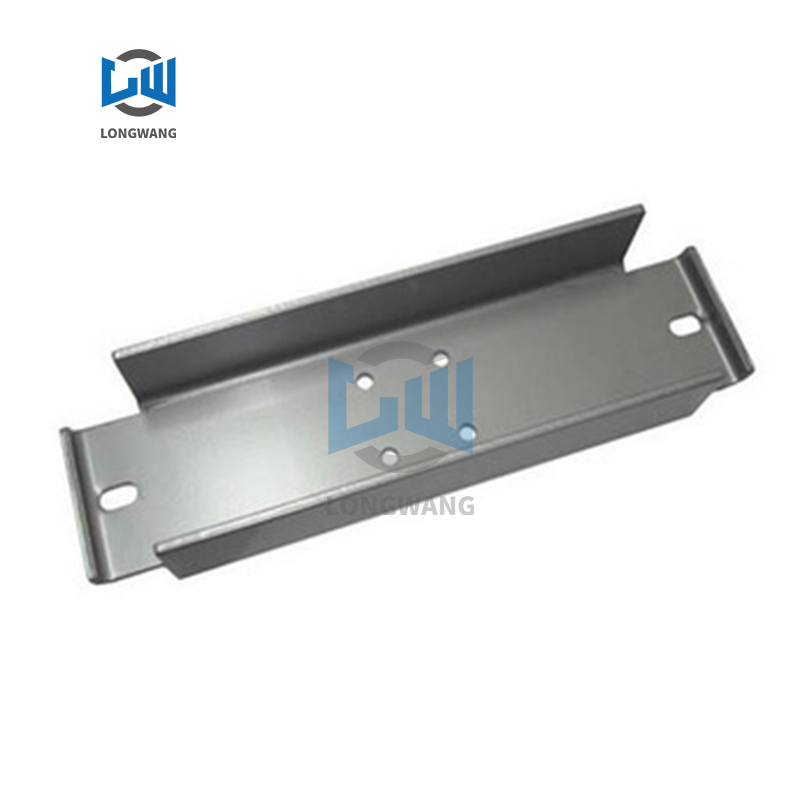

In precision metal fabrication, achieving the perfect angle on a press brake requires more than simply matching a punch to a die. The physical reality of metallurgy dictates that formed metal will naturally attempt to return to its original flat state once forming pressure releases. This inevitable physical reaction is known as sheet metal springback.
Unpredictable or unmanaged recovery directly results in out-of-spec parts, cascading assembly failures, increased scrap rates, and compromised structural integrity. For engineering and procurement teams, failing to account for this phenomenon means blown project timelines and escalating manufacturing costs. Mitigating these risks requires a technical understanding of why this elastic recovery occurs and how specific material properties dictate its severity. Modern engineering and fabrication partners utilize predictive compensation to maintain strict dimensional accuracy. We will break down the mechanics of this process, examine the variables that influence it, and detail the exact strategies used on the shop floor to guarantee precision.
Mechanics of Recovery: Springback is the inevitable elastic recovery of sheet metal after plastic deformation; it is driven by the residual tensile and compressive stresses within the bend zone.
Material and Geometry Variables: The severity of springback is highly dependent on the material's yield strength, the ratio of the bend radius to material thickness, and the specific alloy (e.g., high-strength stainless steel exhibits significantly more springback than mild steel).
Compensation is Mandatory: Achieving tight bending tolerances requires proactive engineering strategies, including overbending, specialized tooling (coining/bottoming), and advanced CNC adaptive bending technology.
Vendor Evaluation: Selecting custom sheet metal bending services should be based on their verifiable ability to predict, measure, and compensate for springback using empirical data, tensile testing insights, and modern press brake technology, rather than relying on trial-and-error.
Bending metal requires forcing it past a specific physical threshold known as the yield point. We define plastic deformation as the permanent yielding of the material required to form a new shape. However, not all deformation during the bending cycle is permanent. Elastic recovery is the material's natural tendency to revert to its original geometry due to the elastic limit of the metal fibers.
The stress-strain curve explains this behavior accurately. Tensile testing reveals a material's exact elastic limit. During a press brake operation, the metal experiences opposing forces simultaneously. The outer fibers of the bend zone are under severe tensile stress, meaning they physically stretch. Conversely, the inner fibers touching the punch tip are under compressive stress, actively compressing against the tooling.
This dynamic creates massive mechanical tension inside the bend zone. The metal temporarily holds this tension while under the tonnage of the ram. When the press brake retracts, this internal tension releases instantly. The stretched outer fibers pull back, and the compressed inner fibers push out. This release of stored energy causes the angle to open up, resulting in the final formed angle being wider than the punch angle.
The standard recovery phenomenon is straightforward. The formed angle simply opens up as the material angularly tries to return to its original flat shape. Fabricators expect this behavior in almost every air bending operation. Operators must calculate for this opening action and overbend the material to achieve the target angle.
A rarer phenomenon exists called springforward. In this scenario, the bend angle actually closes in, becoming tighter than the punch angle. This typically occurs in very specific bottom-bending scenarios or when excessive coining forces reverse the stress dynamics. The immense pressure forces the material to flow differently, causing the inner compressive stresses to overpower the outer tensile stresses upon release.
Elastic recovery is not limited to simple angular changes. The release of forming pressure causes general distortion that spreads across the entire formed part. You must account for these secondary distortions during the design phase, as they often manifest in ways that ruin the part's geometric profile.
One major issue on the shop floor is end flare. This phenomenon happens when the ends of a bent profile spring back more than the center. The center of the bend holds its shape better due to the surrounding material constraint. The unconstrained ends flare out, creating a bowed appearance along the bend line. End flare severely complicates downstream assembly and makes welding long profiles incredibly difficult without heavy fixturing.
Material properties dictate the exact severity of elastic recovery. A direct correlation exists between higher yield strength and increased springback. Harder materials store more elastic energy before they permanently yield. Therefore, they release more energy when the tooling retracts. You must evaluate the specific alloy and its temper before programming the press brake.
Different metals exhibit vastly different recovery behaviors. Standard aluminum alloys generally have a lower yield strength and exhibit relatively low springback. Mild carbon steel sits in the middle, offering moderate and highly predictable recovery. However, stainless steel bending presents a major challenge. Stainless steel possesses high tensile strength and aggressive work-hardening characteristics. The moment the punch hits the material, it hardens, resulting in very high springback severity that requires significant overbending.
Material Type | Yield Strength Profile | Estimated Springback Severity | Work Hardening Risk |
|---|---|---|---|
Aluminum (5052-H32) | Low to Moderate | Low (0.5 - 1.5 degrees) | Low |
Mild Carbon Steel (A36) | Moderate | Moderate (1.5 - 3 degrees) | Low to Moderate |
Stainless Steel (304/316) | High | High (3 - 8 degrees) | Very High |
High-Strength Low-Alloy (HSLA) | Very High | Extreme (5 - 15+ degrees) | High |
Geometry plays a critical role in deformation mechanics. The ratio of the bend radius to the material thickness determines how the stress distributes through the cross-section. A larger radius relative to the thickness results in a higher percentage of elastic deformation. Less of the material reaches the plastic yielding point. Therefore, a larger radius always increases springback.
Conversely, a tighter radius forces more material into plastic deformation. Tight radii reduce springback significantly by forcing permanent yielding across more of the material's cross-section. However, this approach carries severe risks. Bending too sharply crosses the minimum radius threshold, causing the outer fibers to fracture and crack. Operators must balance the radius to minimize recovery without compromising the structural integrity of the metal.
The chosen fabrication method drastically alters the outcome. Air bending is the most common modern technique because it allows one set of tooling to create multiple angles. However, it is highly susceptible to springback. The metal only touches the tooling at three points: the punch tip and the two shoulders of the V-die. It requires precise overbending calculations and a deep understanding of the material's tensile properties.
Bottom bending, or bottoming, offers a different approach. It reduces springback by forcing the material against the V-die walls. The punch pushes the metal fully into the die cavity. This requires significantly higher press brake tonnage and provides better angle consistency, but it limits tooling flexibility since the die angle must match the desired part angle exactly.
Coining is the most extreme method. The punch actually penetrates the neutral axis of the metal, thinning the material at the bend line. This action relieves internal stresses completely and virtually eliminates all springback. However, coining causes severe tool wear and requires massive, often impractical, press brake tonnage. Most modern shops avoid coining entirely due to these equipment risks.
Engineers use specific metrics to quantify elastic recovery. We define the Springback Factor (Ks) mathematically as the ratio of the final bend angle to the initial bend angle. This factor allows fabricators to calculate the exact overbend required. A smaller Ks value indicates a higher degree of recovery. For example, if you bend a part to 88 degrees and it relaxes to 90 degrees, you can calculate the exact Ks value to apply to future bends of that same material lot.
The K-Factor is equally important in these calculations. It represents the exact location of the neutral axis, which is the theoretical line inside the material that neither stretches nor compresses. The K-Factor directly influences the calculation of the bend allowance. Accurate bend allowances are critical for subsequent springback predictions. If the K-Factor is wrong, the flat pattern is wrong, and the final part will fail inspection regardless of how well you manage the angle.
Modern CAD software offers advanced simulation tools that attempt to predict recovery using theoretical calculations. While useful for initial design, purely theoretical calculations have strict limitations on the shop floor. They cannot account for real-world material lot variations. Sheet metal often has inconsistent grain direction, thickness tolerances vary from the mill, and thermal history changes the metal's exact yield strength from batch to batch.
Empirical testing remains absolutely necessary. Fabricators must perform physical test bends using coupons cut from the exact material lot they intend to use for production. They must log this historical data meticulously to create accurate, material-specific bending databases inside the CNC controller. Relying solely on software often leads to scrapped parts. Real-world data always trumps theoretical models in precision fabrication.
The most reliable compensation strategy is overbending. Operators intentionally bend the metal past the target angle. When the pressure releases, the material springs back exactly to the desired final dimension. This requires careful tooling selection. Punch and die angles must accommodate the required overbend clearance.
You cannot overbend an 88-degree angle using a 90-degree die. The tooling itself must have an acute angle. Fabricators typically use 86-degree or 88-degree dies for 90-degree bends. This provides the physical space needed for the punch to drive the material deeper into the V-opening. Specialized urethane dies are also used to allow deep overbending without leaving tooling marks on cosmetic parts.

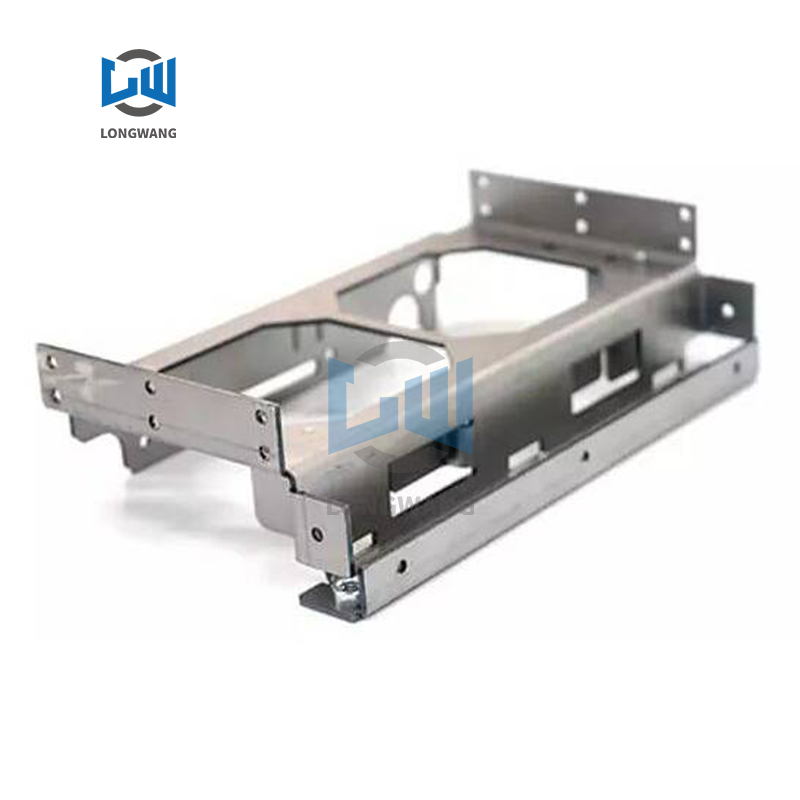

Design engineers can proactively mitigate recovery issues by stiffening the bend zone to resist elastic recovery. This approach also prevents general part distortion. Design for Manufacturability (DFM) principles reduce the reliance on complex tooling compensation and make the part inherently easier to produce.
Add rigid ribs across the bend line to prevent the angle from opening after forming.
Incorporate gussets to provide structural support to the inner radius on heavy brackets.
Use formed darts to disrupt the stress flow and minimize elastic energy storage along long flanges.
Design stepped flanges to increase the overall rigidity of the bent section and prevent end flare.
Utilize hemmed edges near the bend to stabilize the surrounding material and lock the geometry.
Feature layout is equally critical. You must avoid placing holes too close to the bend line. Slots and cutouts cause major issues if positioned poorly because they disrupt the uniform stress distribution. They exacerbate localized springback, which warps the feature into an oval and ruins the part's functionality.
Some materials resist all standard compensation methods. Extreme cases require thermal intervention. Aerospace alloys, high-carbon steels, and titanium are notorious for massive springback and will often crack when bent cold. Hot forming solves these specific metallurgical problems by applying heat directly during the forming process.
Applying heat changes the physical state of the metal, lowering the material's yield strength temporarily. This drastically reduces the stored elastic energy, minimizes springback, and prevents cracking. Annealing the metal before bending achieves a similar result. It softens the material, making it much more ductile and predictable for the press brake operator.
Choosing the right fabrication partner requires establishing strict success criteria for vendor equipment. Look for shops utilizing modern CNC press brakes equipped with real-time angle measurement systems. Laser sensors or mechanical probes are mandatory for high-precision work, as they remove the guesswork from the bending operation.
Advanced equipment utilizes adaptive bending technology. This technology measures the springback in real-time during the stroke. The machine bends the part, releases pressure slightly to allow the material to relax, and the laser reads the actual angle. The CNC controller then automatically adjusts the punch depth and re-strikes the part to achieve the exact target angle. Top-tier custom sheet metal bending services rely heavily on this technology to guarantee first-part accuracy.
You must define acceptable standards before production begins. A standard bending tolerance varies heavily by industry application. Precision aerospace work often requires +/- 0.5 degrees, while general structural work might allow +/- 2 degrees. You must communicate these requirements clearly on your engineering drawings to avoid disputes.
Evaluate how a vendor documents and verifies these tolerances. Reliable shops use Coordinate Measuring Machines (CMM) or calibrated digital protractors on the shop floor. Ask for their First-Article Inspection (FAI) reports. A dependable vendor provides transparent, documented proof of their dimensional accuracy rather than just shipping parts and hoping they fit.
Choosing a low-cost fabricator often leads to high hidden costs. If a shop lacks adaptive technology, they will struggle with consistency across different material lots. They will rely on manual guesswork instead of empirical data, leading to a high variance in part quality.
The risks of inadequate compensation are severe. You will face extensive manual rework on the assembly line trying to force parts together. Inconsistent batches cause major production bottlenecks. Furthermore, forcing out-of-spec parts to fit compromises structural integrity. The residual stress from forced fits leads to premature field failures, weld cracking, and warranty claims.
Audit your current flat patterns and 3D models to ensure bend radii align with the actual tooling available on your fabricator's shop floor.
Update your engineering drawings to specify exact angular tolerances rather than relying on default title block dimensions.
Request empirical test data and First-Article Inspection reports from your vendors before approving full production runs on new materials.
Implement Design for Manufacturability principles by adding stiffening ribs or relief cuts to parts that historically suffer from severe distortion.
A: The Springback Factor (Ks) is calculated by dividing the final bend angle by the initial bend angle (Ks = Final Angle / Initial Angle). While complex formulas involving yield strength and elastic modulus exist, fabricators primarily rely on this ratio combined with empirical test data to determine the exact overbend required.
A: Material thickness directly impacts the bend radius-to-thickness ratio. Thicker materials bent at the same radius experience more plastic deformation and less elastic recovery. Conversely, thinner materials bent at a large radius retain more elastic energy, resulting in significantly higher springback.
A: It cannot be eliminated in standard air bending. However, a process called coining can virtually eliminate it. Coining uses massive tonnage to penetrate the material's neutral axis, relieving internal stresses. Due to extreme tool wear and tonnage requirements, coining is rarely used in modern fabrication.
A: Stainless steel has a much higher yield strength and tensile strength than standard aluminum alloys. It also has aggressive work-hardening characteristics. This means it stores significantly more elastic energy during deformation, which releases forcefully when the press brake retracts, causing greater angular recovery.
A: Springback occurs when the formed angle opens up as the material tries to return to its flat state. Springforward is the opposite; the angle closes in tighter than the punch angle. Springforward is rare and usually occurs during heavy bottoming or coining when internal compressive stresses overpower tensile stresses.
A: Sheet metal has a directional grain structure created during the rolling process at the mill. Bending parallel to the grain increases the risk of cracking and alters the elastic recovery profile. Bending perpendicular to the grain provides more consistent springback and stronger, fracture-resistant bends.
