Procurement stakes are incredibly high in modern manufacturing environments. A slight oversight in a custom sheet metal order can lead to compounding assembly failures, delayed product launches, and massive budget overruns. You simply cannot afford to treat these critical structural components as late-stage afterthoughts. Transitioning from digital CAD files to physical parts requires bridging a vast gap between theoretical design and harsh manufacturing reality. Many buyers unfortunately focus solely on the lowest initial quote they receive. In doing so, they miss critical capability gaps in their chosen vendor, risking entire production runs. This comprehensive guide provides an evidence-based evaluation framework. You will learn to audit your designs, assess vendor capabilities, and thoroughly eliminate hidden supply chain risks. Follow these precise steps before you finalize your next purchase order to guarantee project success.
DFM is non-negotiable: Validate bend radii, K-factors, and material constraints before submitting files to prevent costly revisions.
Audit supplier capabilities: Ensure the vendor's machinery and finishing options align with your specific tolerance and aesthetic requirements.
Demand QA transparency: Require First Article Inspections (FAI) and verify ISO compliance to guarantee batch-to-batch consistency.
Calculate Total Landed Cost: Look beyond the initial quote to account for tooling, setup fees, scrap allowances, and shipping.
Assess scalability: Choose a partner capable of bridging the gap between rapid prototyping and high-volume production.
You must validate your technical baseline before requesting any quotes. Flawed digital models inevitably create flawed physical parts. Applying Design for Manufacturability (DFM) principles reduces errors and accelerates production timelines.
Ensure your designs account for material-specific bend allowances. Failing to include proper bend relief often causes metal cracking or tearing during press brake operations. You face immense risks if you rely solely on default CAD software assumptions. Standard CAD programs rarely account for the specific grain direction or yield strength of real-world alloys. Always calculate the correct K-factor for your chosen material gauge. Provide adequate relief cuts at flange intersections to allow clean bending.

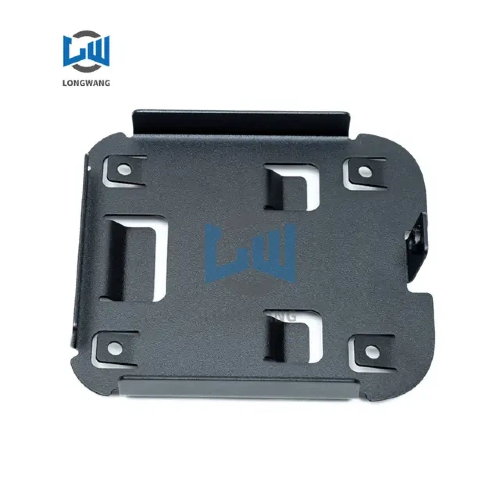

Hole placement significantly impacts structural integrity during Sheet Metal Fabrication. Check that your specified hole diameters always exceed the base material thickness. Punching tiny holes in thick metal breaks expensive tooling and halts production. Furthermore, position all holes and slots far enough away from edges and bend lines. Placing a hole too close to a bend radius guarantees unwanted deformation as the metal stretches.
You must differentiate between tight machining-level tolerances and standard sheet metal tolerances. Milling a solid block of aluminum allows for microscopic precision. Bending flat metal sheets introduces natural variations. Warn your engineering team against over-tolerancing non-critical dimensions. Calling out unnecessarily tight tolerances exponentially increases costs. It forces operators to perform manual secondary operations without adding any functional value to your final assembly.
Matching your project requirements with a supplier's internal infrastructure is vital. The right partner possesses the specific machinery necessary to execute your design efficiently. You must look under the hood of their operation.
Assess if the vendor utilizes modern fiber lasers, waterjets, or CNC turret punches. Their primary cutting technology must be appropriate for your material type and thickness. Ask detailed questions about their cutting beds.
Cutting Technology | Best Suited For | Common Limitations |
|---|---|---|
Fiber Laser | Thin to medium carbon steel, stainless steel, aluminum. High speed. | Struggles with highly reflective metals or extremely thick plates. |
Waterjet | Thick plates, heat-sensitive alloys, complex composites. No heat-affected zone. | Slower cutting speeds. Higher operational costs per inch. |
CNC Turret Punch | High-volume runs requiring extensive hole patterns or louvers. | Requires specific tooling for unique shapes. Setup takes longer. |
Check their press brake tonnage and internal tooling library. Bending thick steel plates demands massive hydraulic pressure. Do they possess the exact tooling required for your specified bend radii? A capable Sheet Metal Fabrication Service maintains a vast inventory of standard V-dies and punches. If your design requires custom tooling, this will add significant lead time and upfront costs to your project.
Determine if critical secondary operations happen under one roof. Processes like powder coating, anodizing, zinc plating, and passivation protect metal from corrosion. When a vendor outsources finishing, it adds massive supply chain friction. Transit times between facilities cause unavoidable delays. Worse, if quality issues arise, the fabricator and the finishing shop often blame each other. Insist on end-to-end accountability whenever possible.
Trust is good, but verifiable data is better. You need absolute transparency regarding quality control. Robust risk mitigation relies on strict adherence to proven industry frameworks.
Look far beyond superficial marketing claims of "high quality." Require verifiable standard certifications before issuing a purchase order. ISO 9001:2015 provides a strong baseline for general manufacturing quality management. If you operate in specialized sectors, demand niche credentials. Aerospace projects require AS9100 compliance. Medical device enclosures demand ISO 13485 certification. These credentials prove the vendor maintains documented, repeatable processes.
Ask prospective vendors about their specific inspection methodologies. Require a First Article Inspection (FAI) process for new product introductions. An FAI report systematically verifies every single dimension on the first production unit against your CAD file. For larger ongoing programs, assess their Production Part Approval Process (PPAP) capabilities. These rigorous protocols ensure operators catch deviations early, preventing hundreds of scrap parts.
For structural or regulated applications, material origin matters deeply. Verify that the supplier can readily provide Mill Test Reports (MTRs). An MTR details the chemical and physical properties of the exact raw metal batch used for your parts. Ask how they handle lot tracking on the shop floor. If a part fails in the field six months later, you must trace that failure back to a specific metal sheet.
Focusing strictly on the per-piece quote is a dangerous procurement trap. You must evaluate the holistic financial picture. Hidden fees quickly erode profit margins.
Clarify how the vendor handles custom dies, specialized jigs, or welding fixtures. Some suppliers amortize these costs directly into the piece price over a high-volume run. Others bill you a massive lump sum upfront. You need to know who owns the custom tooling once you pay for it. Make sure you can transfer your fixtures to a new vendor if the relationship sours.
Understand exactly who pays for raw material waste. Metal pricing fluctuates daily. Efficient fabricators utilize advanced nesting software to pack flat patterns tightly onto a single sheet. This optimization improves material utilization rates drastically. Ask your Custom Sheet Metal Fabrication partner about their average scrap percentages. Lower scrap means lower material costs passed on to you.
Factor in the logistical reality of shipping heavy metal parts. Metal is dense, bulky, and expensive to move. A slightly more expensive local supplier may yield a significantly lower Total Landed Cost (TLC) than a cheaper overseas vendor. Once you add ocean freight, port delays, domestic trucking, and import tariffs, the "cheap" parts often become your most expensive components. Calculate TLC accurately before making your final decision.
Your chosen vendor must support your product life cycle today and tomorrow. Evaluate their long-term viability and lead time reliability early in the sourcing phase.
Many buyers struggle when transitioning from R&D to mass market. You must evaluate if the vendor specializes solely in quick-turn prototypes or if they can scale. Use this framework to assess their production readiness:
Automation levels: Do they use robotic welding cells or automated sheet loaders for lights-out manufacturing?
Facility square footage: Can they dedicate floor space to assemble and pack your high-volume orders?
Supply chain leverage: Do they buy raw materials in bulk directly from mills to secure favorable pricing?
Choose a vendor equipped with the automated cells necessary for high-volume, repeatable runs.
Scrutinize their "standard" lead times closely. Ask difficult questions about how they handle sudden capacity constraints during peak manufacturing seasons. Inquire about their strategies for navigating global raw material shortages. A reliable vendor buffers their inventory to protect key clients. They give you honest timelines, not optimistic guesses designed to win your business.
A credible vendor acts as a true engineering partner. They do not blindly push a button and manufacture a flawed design. They proactively flag potential bend collisions or tolerance stack-ups in your CAD model before cutting any metal. Responsive communication during the prototyping phase usually indicates how they will handle production crises later. If they ignore your emails now, they will ignore you when a shipment is late.
Use an actionable, step-by-step logic before issuing your final sign-off. Missing a small administrative detail can delay production by weeks.
Ensure your engineering data package is complete and unambiguous.
Are your 3D CAD models exported in universally accepted formats like STEP or IGES?
Did you pair 3D files with fully dimensioned 2D PDF drawings?
Do those 2D drawings explicitly call out critical tolerances, tapped threads, and masking requirements?
Double-check your material specifications. Vague requests lead to incorrect metal selection. Is the specific alloy explicitly stated (e.g., Aluminum 5052-H32)? Did you specify the exact sheet temper and numerical thickness gauge? Never leave these decisions open to interpretation.
Solidify your commercial agreements before the sparks fly. Are the delivery terms (Incoterms) clearly stated on the purchase order? Have you established a mutually agreeable payment schedule? Finally, ensure you have a written defect-resolution policy. You need a contractual remedy if a batch arrives out of spec.
Audit relentlessly: Ordering custom sheet metal parts requires proactive risk management. Validating your DFM saves time and prevents scrap.
Look beyond price: Auditing supplier equipment, quality certifications, and scalability ensures they can meet your true demands.
Calculate fully: Understanding TLC protects your profit margins from hidden tooling and freight fees.
Next-Step Action: Do not guess. Submit your current CAD files to a prospective vendor for a comprehensive DFM review today. Request a sample quote to test their engineering responsiveness and communication firsthand.
A: Standard tolerances typically range from +/- 0.005" to +/- 0.015". This depends entirely on the specific feature, material thickness, and bending requirements. Remember that unnecessarily tighter tolerances significantly increase manufacturing costs because they demand specialized handling and secondary machining.
A: Yes, absolutely. 3D models dictate the physical geometry, but 2D drawings serve as legally binding documents. You need 2D PDFs to clearly define critical tolerances, specific thread specifications, masking instructions, and final surface finishes.
A: You can lower costs rapidly by standardizing bend radii across the entire part. Loosen any non-critical functional tolerances. Design your parts using standard, readily available sheet gauges. Finally, optimize your flat pattern designs to allow for efficient nesting and minimal material waste.
A: An FAI is a rigorous, documented verification of the very first part produced. Quality inspectors measure every physical dimension against the customer's exact 2D specifications. This crucial step happens before full production begins, ensuring absolute process capability and design alignment.
