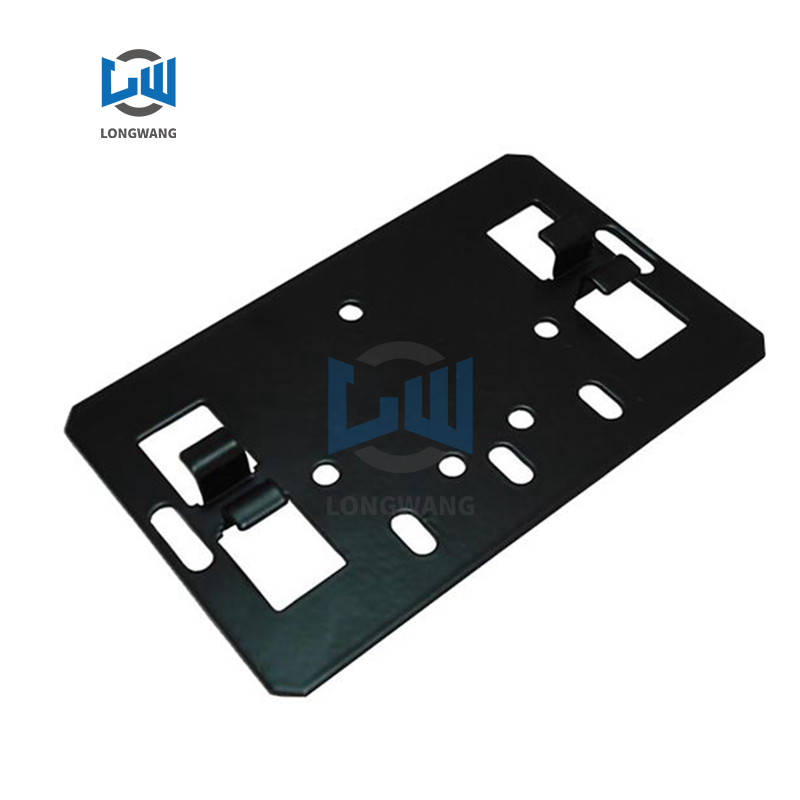

In precision manufacturing, the dimensional accuracy and edge quality of a finished component depend directly on the physical properties of the raw material. Specifying an inappropriate material thickness for a given design leads to thermal distortion, severe edge striations, out-of-tolerance features, and higher scrap rates. Engineering teams must understand how laser cutting sheet thickness affects the fabrication process before finalizing CAD files. A design that cuts perfectly on 2mm sheet metal often fails when scaled up to a 15mm plate without geometric adjustments. You must align your part geometry with the physical limitations of the laser beam.
To ensure manufacturability, engineers and procurement teams must understand the exact relationship between laser dynamics, material type, and sheet thickness. We will break down the physics of beam divergence, specific material behaviors, and the design rules required to process thick plates successfully.
Beam Dynamics Dictate Precision: As material thickness increases, laser beam divergence causes wider kerfs and a natural degradation in edge squareness. Conversely, thin materials allow for tighter tolerances and minimal heat distortion.
Design Rules Scale with Thickness: Interior features, such as holes and slots, must generally maintain a diameter of at least 50% of the material thickness to prevent blowout.
Material Composition Matters: Thermal conductivity and melting points mean that a 10mm sheet of carbon steel will cut differently—and require different tolerances—than a 10mm sheet of stainless steel or aluminum.
Equipment Selection is Critical: Evaluating custom laser cutting services requires verifying whether their specific equipment (Fiber vs. CO2) is optimized for the exact thickness your project demands, as edge quality noticeably degrades on extreme thicknesses without the right setup.
A high-quality laser cut exhibits minimal dross on the bottom edge, tight dimensional tolerances, and a perpendicular cut face. The edge should remain smooth and free of deep striations. Achieving these success criteria becomes progressively harder as material thickness increases. The laser beam must penetrate deeper into the metal, which introduces complex thermal and optical challenges. You cannot expect the same pristine edge on a 20mm plate that you get on a 1mm sheet.
Operators evaluate cut quality by measuring edge squareness and surface roughness. Thin materials naturally support these goals. The beam passes through the metal almost instantly, vaporizing the material and allowing the assist gas to clear the kerf without resistance. Thick materials force the laser to dwell longer. This extended dwell time destabilizes the melt pool. The molten metal has a longer distance to travel before it exits the bottom of the cut, increasing the chance of it freezing and forming dross.
A laser beam is not a perfectly straight cylinder of light. It takes an hourglass shape. The beam converges at a specific focal point and then diverges as it moves past that point. When cutting thin sheet metal, the entire thickness of the material sits within the narrowest part of this hourglass, known as the depth of focus or Rayleigh length. The kerf width remains consistent from the top surface to the bottom surface.
As thickness increases, beam divergence becomes a major mechanical issue. The laser beam spreads as it penetrates deeper into thick materials. This spread creates a wider kerf at the bottom of the cut compared to the top. The resulting geometry features a slight taper. You lose edge perpendicularity. To combat this, operators change the lenses in the cutting head.
Lens Focal Length | Optimal Material Thickness | Beam Characteristics | Taper Effect on Thick Plate |
|---|---|---|---|
5.0 inch | 1mm - 6mm | Small spot size, high energy density, short depth of focus. | Severe taper. Beam diverges rapidly after focal point. |
7.5 inch | 8mm - 15mm | Medium spot size, moderate depth of focus. | Moderate taper. Balances speed and edge squareness. |
10.0 inch | 16mm - 25mm+ | Large spot size, long depth of focus, lower energy density. | Minimal taper. Maintains straight edges on heavy plate. |
Thin materials hold a baseline advantage. They inherently support tighter tolerances due to a highly focused beam and minimal kerf variation. You can achieve tolerances of ±0.1mm easily on thin stock. Thick plates often require tolerances of ±0.3mm or looser to account for bottom-edge taper and the wider kerf generated by longer focal length lenses.
Lasers cut metal by melting or vaporizing it. This process generates intense heat. Thicker materials require slower cutting speeds to ensure the beam penetrates completely. Slower speeds mean the laser dwells on the material longer. This prolonged heat exposure expands the Heat-Affected Zone (HAZ) along the cut edge. The HAZ alters the microstructure of the metal, often hardening the edge and making secondary machining operations like tapping or countersinking difficult.
Excessive heat buildup causes warping. The metal expands as it heats and contracts as it cools. This thermal cycling introduces severe residual stresses into the part. Parts with dense feature clusters or narrow webs are highly susceptible to thermal distortion. If you pack too many holes into a thick steel plate, the accumulated heat will warp the entire component out of flatness.
Operators must manage this heat input carefully using specific programming strategies:
Jump Cutting: Instead of cutting all features in one localized area, the laser moves across the sheet, cutting one hole here and another hole far away. This distributes the heat evenly.
Pre-piercing: The machine pierces all the holes in the sheet first, allowing the plate to cool before coming back to cut the actual perimeters.
Water Mist Cooling: Some advanced machines spray a fine mist of water alongside the cutting head to rapidly cool the plate during heavy cutting.
Different metals react uniquely to the laser cutting process. carbon steel laser cutting relies heavily on an exothermic chemical reaction. When cutting thick carbon steel plates, operators use oxygen as an assist gas. The oxygen reacts with the heated steel, generating additional thermal energy. This extra heat allows the laser to cut through plates up to 25mm or 30mm thick efficiently without requiring massive amounts of electrical power.
However, this oxygen reaction has consequences. It leaves a distinct oxide layer on the cut edge. This dark, scaly layer is brittle. It matters significantly for downstream processes. If you plan to weld the edge or apply powder coating, you must remove this oxide layer mechanically. Paint will adhere to the oxide scale, and when the scale flakes off under stress, the paint falls off with it.
The pressure of the oxygen assist gas must be carefully regulated based on thickness. Thin mild steel requires higher oxygen pressure to blow the melt away. Thick mild steel requires very low oxygen pressure. If the pressure is too high on a 20mm plate, the exothermic reaction burns out of control, melting the entire edge and destroying the part geometry.
Stainless steel behaves entirely differently. stainless steel laser cutting requires a melt-and-blow process. Operators use high-pressure nitrogen as the assist gas. Nitrogen is inert. It does not react with the metal. It simply blows the molten material out of the kerf, leaving a clean, oxide-free edge that is immediately ready for welding or food-grade applications.
Because there is no exothermic reaction to help melt the metal, the laser must provide 100% of the thermal energy. Therefore, stainless steel requires exponentially more power to cut cleanly as thickness increases compared to mild steel. A 4kW laser might easily cut 15mm carbon steel, but it will struggle heavily with 15mm stainless steel. Cutting thick stainless requires massive gas pressure—often exceeding 250 PSI—to evacuate the heavy molten material from the deep kerf before it freezes into solid dross on the bottom edge.
Aluminum presents two distinct challenges: high thermal conductivity and high reflectivity. Thick aluminum sheets pull heat away from the cut zone rapidly. The laser must pump massive amounts of energy into the material just to maintain the melt pool. Simultaneously, the reflective surface bounces a portion of the laser beam back toward the cutting head, which can damage the optics on older equipment.
Because of these properties, thickness limits for aluminum generally remain lower than those for ferrous metals on standard equipment. While a machine might cut 20mm steel, it may max out at 12mm aluminum. The edges of thick aluminum cuts often show more dross and rougher striations due to the rapid cooling of the molten metal before it fully exits the kerf. Different alloys also behave differently; 5052 aluminum cuts cleaner than 6061 due to the varying magnesium and silicon content.
You must translate physical thickness limitations into actionable CAD design guidelines. When designing laser cutting parts, the size of interior features must scale with the material thickness. The industry-standard rule dictates that interior cutouts should not be smaller than 50% of the material thickness. For maximum precision and edge quality, a 1:1 ratio is highly recommended.
If you attempt to cut a 3mm hole in a 12mm steel plate, you will experience blowout. The laser must pierce the material before it begins cutting the hole perimeter. In thick metal, piercing generates a massive pool of molten slag. If the hole diameter is too small, the heat from the pierce cannot dissipate. The surrounding material melts uncontrollably. The hole loses its geometric shape entirely, resulting in a scrapped part.
Material Thickness (mm) | Minimum Hole Diameter (50% Rule) | Recommended Hole Diameter (1:1 Rule) | Blowout Risk Level at Minimum Size |
|---|---|---|---|
2.0 | 1.0 mm | 2.0 mm | Low. Heat dissipates rapidly. |
6.0 | 3.0 mm | 6.0 mm | Moderate. Requires pulse piercing. |
12.0 | 6.0 mm | 12.0 mm | High. High risk of edge melting. |
20.0 | 10.0 mm | 20.0 mm | Severe. Hole will likely deform. |

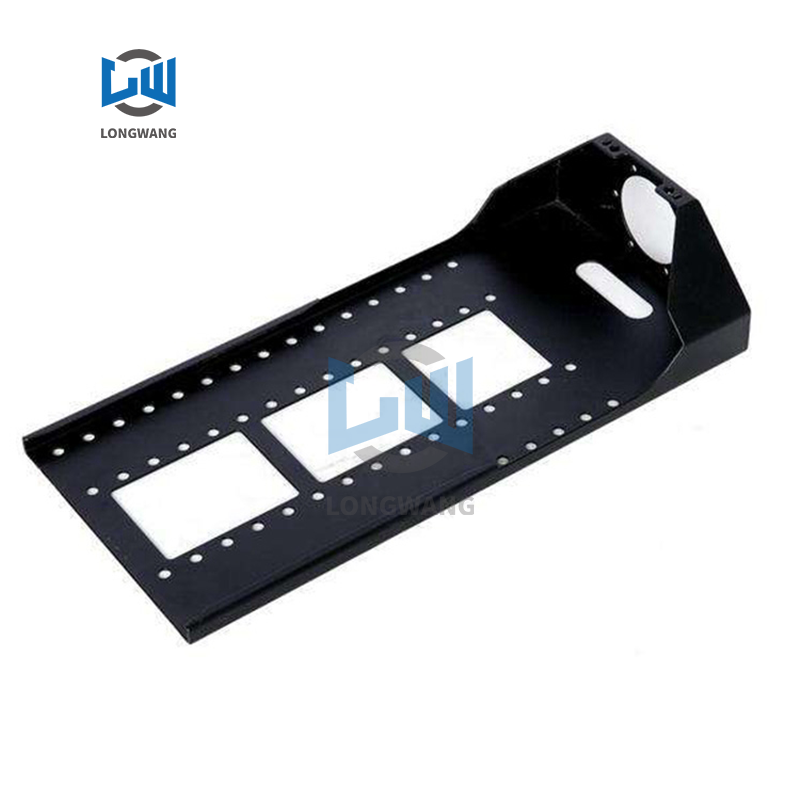

Sheet metal parts often undergo press brake forming after laser cutting. Designers must leave adequate distance between laser-cut features and bend lines. The standard rule is to maintain a distance of at least 1.5x to 2x the material thickness between the edge of a hole and the center of a bend line.
If you place a hole too close to a bend in thick material, the press brake will deform the feature. As the punch pushes the metal into the die, the material stretches along the outer radius. This stretching pulls adjacent holes into oval shapes. Thicker materials require larger bend radii and experience more severe stretching, making this proximity rule critical for heavy plates. If a hole must be close to a bend, you must machine it after forming, which adds significant labor time.
Webbing refers to the solid material left between two adjacent cuts. To maintain structural integrity during the cutting process, the web must be at least equal to the material thickness. Narrow webs cannot absorb the heat generated by the laser. They will melt, warp, or burn away completely, destroying the part.
When nesting parts on a sheet, programmers must also space the parts according to thickness. Thick plates require wider spacing between parts to prevent the heat from one cut from affecting the adjacent part. Proper webbing ensures the skeleton remains rigid, preventing the sheet from shifting on the cutting bed. If the skeleton warps and lifts, it can crash into the laser head, causing thousands of dollars in damage.
Every fabrication project requires balancing speed, precision, and edge quality. sheet metal laser cutting offers incredible speed on thin gauges. Thin materials allow for rapid, high-precision processing with minimal thermal impact. The laser moves at hundreds of inches per minute, leaving a superior, glass-like edge smoothness.
This dynamic changes drastically as thickness increases. There is an exponential drop in cutting speed required to maintain edge quality on plates thicker than 1/2 inch (12.7mm). If the operator pushes the machine too fast on thick plate, the beam will not clear the molten metal from the bottom of the kerf. This results in heavy dross accumulation and deep, jagged striations along the cut face. To get a smooth edge on heavy plate, you must accept significantly longer cycle times.
Thin sheets (1mm - 3mm): High speed (up to 1000+ IPM), zero dross, tight tolerances.
Medium plates (4mm - 10mm): Moderate speed (100 - 300 IPM), minor striations, standard tolerances.
Heavy plates (12mm+): Slow speed (20 - 80 IPM), visible striations, looser tolerances required.
The type of laser technology used heavily impacts the maximum thickness capabilities and edge quality. Fiber lasers dominate thin-to-medium gauge cutting. Their 1-micron wavelength absorbs highly into metals, allowing them to cut thin sheets at blistering speeds. They are highly efficient and require less maintenance.
However, there is a threshold where edge quality degrades. Historically, many fabricators did not recommend standard Fiber lasers (under 6kW) for extremely thick sheets. The beam profile of older Fiber lasers created a very narrow kerf that struggled to evacuate molten material from deep cuts. Fabricators favored high-wattage CO2 lasers for heavy plates. The 10-micron wavelength of a CO2 laser produces a wider kerf, resulting in a smoother, striation-free edge on thick carbon steel.
Today, ultra-high-power Fiber lasers (12kW to 30kW) are closing this gap. These massive power levels, combined with advanced beam-shaping optics, allow modern Fiber lasers to cut thick plates with edge quality that rivals legacy CO2 machines. The beam-shaping technology physically alters the laser from a sharp point into a ring or a wider spot, mimicking the wider kerf of a CO2 laser while maintaining the speed advantages of fiber delivery.
Achieving a near-perfect edge on heavy plates is not automatic. It requires advanced machine tuning and deep operator expertise. The machine must be calibrated perfectly to handle the specific material thickness. Operators must adjust the focal point precisely, placing it deep inside the material to ensure the beam clears the bottom of the cut. If the focal point is too high, the bottom of the cut will fill with dross.
Nozzle centering is equally critical. If the laser beam is not perfectly centered within the assist gas nozzle, the gas flow will be uneven. This causes dross to build up on one side of the cut while the other side remains clean. Operators must also utilize dynamic assist gas pressure control, ramping up the pressure as the beam penetrates deeper into the plate. They must select the correct nozzle type—single-layer nozzles for nitrogen cutting and double-layer nozzles for oxygen cutting—to control the gas dynamics properly.
Piercing thick plates is the most violent part of the laser cutting process. A continuous wave pierce on a 20mm steel plate will create a massive crater. The molten metal splatters upward, potentially destroying the expensive protective glass on the laser cutting head. To prevent this, operators use advanced piercing techniques.
Thick plates require multi-stage or pulse piercing. The laser pulses rapidly, drilling through the material layer by layer rather than blasting through it all at once. This keeps the heat controlled and prevents cratering. A 20mm plate might require a 3-stage pierce, where the laser pauses at different depths to let the material cool. Additionally, programmers must design proper lead-ins and lead-outs. These toolpaths start the pierce outside the actual part boundary. The laser pierces the scrap material, stabilizes the beam, and then moves into the final part edge. This ensures the actual part geometry remains flawless.
When thick materials are non-negotiable for your product's structural integrity, you must partner with the right vendor. Evaluating custom laser cutting services requires looking beyond basic capabilities. You need a partner who understands the physics of heavy plate processing.
Demand upfront Design for Manufacturability (DFM) reviews. A competent fabricator will flag undersized holes and narrow webs before they waste raw material. Buyers should ask potential fabrication partners specific questions during the vetting process:
What is your maximum clean-cut thickness for stainless steel versus carbon steel?
Do you use beam-shaping optics on your fiber lasers for heavy plates?
What tolerance bands do you guarantee on parts thicker than 12mm?
How do you handle edge oxidation on thick carbon steel parts destined for welding?
Do your programmers automatically adjust lead-ins based on material thickness?
Audit all current part designs against the 50% minimum hole rule and the 1.5x bend line proximity rule.
Update your CAD models to widen tolerances on any steel or aluminum plates thicker than 10mm.
Specify edge condition requirements, such as oxide-free edges for welding, clearly on your manufacturing drawings.
Submit your updated files to a qualified fabrication partner for a technical feasibility review and quote.
A: Maximum thickness varies heavily based on laser type and wattage. High-end commercial fiber lasers can cut carbon steel up to 30mm and stainless steel up to 25mm. However, edge quality and cutting speeds degrade significantly near these maximum limits. For pristine edges, fabricators often keep thicknesses below 20mm.
A: Thicker materials result in wider kerfs and more beam divergence. The beam spreads as it cuts deeper, creating a slight taper on the bottom edge. This physical reality requires wider tolerance bands compared to the tight tolerances easily achievable on thin sheet metal.
A: Cutting thick plates requires slower cutting speeds and higher heat input. It is physically difficult to evacuate heavy molten material from a deep kerf. This extended dwell time and difficult material evacuation lead to visible striations, thermal distortion, and dross accumulation on the bottom edge.
A: The general industry rule dictates that the minimum hole diameter should be at least 50% of the material thickness. However, a 1:1 ratio is highly recommended for optimal edge quality and to prevent molten blowout during the initial piercing phase.
A: Yes. Fiber lasers excel in cutting thin-to-medium sheets at extreme speeds due to their 1-micron wavelength absorption. Historically, CO2 lasers provided smoother edges on very thick plates due to a wider kerf. Today, ultra-high-power fiber lasers with beam-shaping technology are closing this gap.
