Designing lightweight yet strong components challenges every engineer. You often face a tough choice. You can rely on complex multi-part assemblies, or you can opt for single-piece formed parts. Multi-part designs introduce severe weak points into a structure. Fasteners and welds compromise structural integrity over time. They also drive up component weight and extend assembly schedules. You need a better way to balance strength and mass.
Precision bending solves this dilemma by consolidating assemblies into unified components. This approach eliminates unnecessary joints and drastically lowers failure risks. You gain a highly rigid structure without adding redundant material. However, this strategy only succeeds if you can strictly control dimensional accuracy.
In this article, you will discover how to master mechanical bending variables. We will evaluate the core mechanical advantages of forming metal. We will also define the engineering metrics required for tight tolerances and outline how to select a true precision partner.
Structural Integrity: Bending improves part stiffness and leverages work hardening, eliminating the heat-affected zones (HAZ) associated with welding.
Predictable Precision: Achieving high dimensional accuracy requires exact calculations of K-factor, bend allowance, and springback compensation.
Method Selection: The choice between cold and hot working dictates the final tolerance capabilities and material limits.
Vendor Evaluation: High-tolerance bending relies on modern CNC press brakes with active angle measurement and rigorous tooling maintenance protocols.

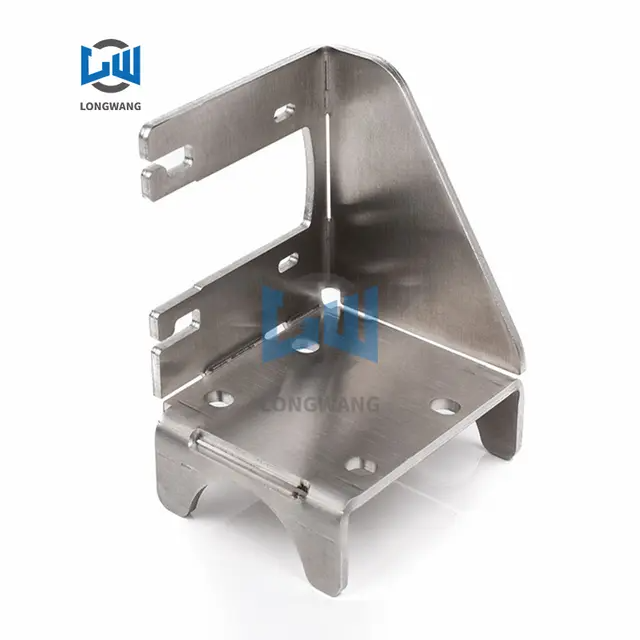

When you transform a flat sheet of metal into a 3D component, you initiate complex material changes. Metal deformation does not just alter the shape of a part. It fundamentally changes the mechanical properties of the material at the bend line. Engineers leverage this physical transformation to maximize component strength.
Cold-forming forces metal to bend past its yield point. However, it remains below its ultimate tensile strength. During this process, the material undergoes strain hardening, commonly known as work hardening. The metal grain structure elongates and compresses along the bend axis. Dislocation density within the crystal lattice increases rapidly. This structural shift creates a highly localized increase in yield strength right at the bend. Ultimately, the folded corner becomes stronger than the original flat sheet.
Traditional assemblies rely heavily on mechanical fasteners and welded joints. Both methods introduce significant vulnerabilities. Replacing these connections with bent angles drastically reduces shear stress risks. Consider the following mechanical improvements:
No Heat-Affected Zones (HAZ): Welding introduces intense, localized heat. This thermal shock warps metals and weakens the surrounding grain structure. Forming removes the need for heat entirely.
Elimination of Stress Raisers: Rivets and bolts require drilled holes. Every hole acts as a stress concentrator where cracks easily initiate. A continuous folded edge eliminates these stress raisers entirely.
Fewer Points of Failure: Fasteners loosen under vibration. Welds suffer from fatigue over time. A single-piece formed component provides unbroken structural continuity.

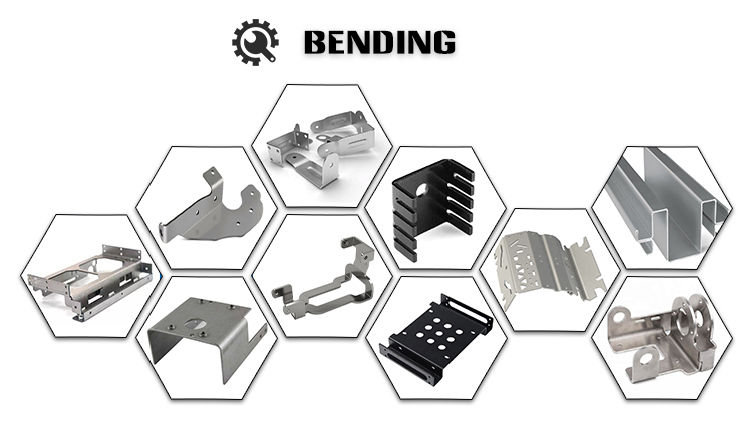

You do not need thicker materials to achieve a stiffer part. Intelligent geometry often outweighs raw material mass. Demonstrate how adding a flange or hem via Sheet Metal Bending exponentially increases the moment of inertia. The moment of inertia measures an object's resistance to bending. By simply folding an edge at 90 degrees, you push the material's mass further away from its neutral axis. This simple geometric change drastically increases overall bending stiffness without adding a single ounce of material weight.
You cannot achieve final structural precision by accident. Precision relies heavily on meticulous upfront math. A perfect 3D model looks great on a screen, but the manufacturing floor cuts a 2D blank. Clarify that final 3D structural precision is entirely dependent on accurate 2D flat pattern calculations in Custom Sheet Metal Fabrication.
To unfold a 3D model accurately, engineers must calculate exactly how the metal will stretch and compress. These calculations rely on two primary metrics:
K-Factor & Bend Allowance: When metal bends, the inside radius compresses while the outside radius stretches. Somewhere in the middle lies the neutral axis. This axis experiences zero compression and zero tension. The K-Factor defines exactly where this neutral axis shifts during deformation. Material thickness, inside bend radius, and material hardness dictate this shift. Calculating the K-Factor allows engineers to determine the exact Bend Allowance—the total length of material consumed by the bend itself.
Springback Realities: We must maintain an evidence-based approach to metal forming. Acknowledge that all metals experience elastic recovery. When the press brake releases its pressure, the material naturally attempts to return to its original flat state. This is springback. Precision requires predictive over-bending. You cannot rely on theoretical CAD models alone. Operators and software must calculate the specific over-bend angle needed so the part relaxes into its precise target dimension.
You must establish realistic expectations for bending accuracy. Tighter tolerances require specialized tooling, premium materials, and longer setup times. The table below outlines typical industry benchmarks.
Tolerance Level | Dimensional Accuracy | Angular Accuracy | Typical Application |
|---|---|---|---|
Standard Commercial | ± 0.015" to ± 0.030" | ± 1.0° to ± 2.0° | General enclosures, brackets |
Precision Manufacturing | ± 0.005" to ± 0.010" | ± 0.5° to ± 1.0° | Telecom, medical chassis |
Aerospace / High-End | ± 0.002" to ± 0.005" | ± 0.25° to ± 0.5° | Avionics, structural frames |
The temperature at which you form metal heavily influences its final precision and structural integrity. The choice between cold and hot working dictates your tolerance capabilities and sets strict material limits.
Cold working happens at room temperature. The vast majority of precision sheet metal components use this method.
Best for: Cold working guarantees high dimensional accuracy. It delivers tighter tolerances and produces highly predictable surface finishes. Material properties remain consistent, and dimensions do not shift after the forming process completes.
Risks: Bending harder alloys at room temperature increases the risk of cracking along the outside radius. Cold working also generates significantly higher springback rates. Engineers must calculate precise over-bend compensations to achieve the desired angle.
Hot working involves heating the metal above its recrystallization temperature before forming.
Best for: This method dominates the heavy structural industry. It proves ideal for thick steel plates. Heat makes the material highly ductile. You can form extremely complex geometries without fracturing the metal. Hot working also effectively eliminates springback.
Risks and Trade-offs: You sacrifice high dimensional precision. Metals expand when heated and contract when cooling. This thermal shifting makes it nearly impossible to hold tight aerospace-level tolerances. Additionally, hot working often produces surface scaling, which requires post-fabrication cleaning or machining.
Guide your project planning by specifying the right method based on material gauge and application-critical tolerances. Use the following decision matrix to determine your best path forward.
Project Requirement | Recommended Method | Primary Benefit | Key Limitation |
|---|---|---|---|
Thin Gauge (<0.250"), Tight Tolerance | Cold Working | Exceptional precision and finish | High springback compensation needed |
Hard Alloys (e.g., Titanium), Thin Gauge | Warm / Cold Working | Prevents micro-cracking | Specialized tooling required |
Thick Plate (>0.500"), Complex Angle | Hot Working | Zero springback, no fracturing | Thermal contraction impacts final size |
Many modern industries push the limits of what metal forming can achieve. When cumulative tolerance errors occur, assemblies fail. High-quality Sheet Metal Fabrication ensures that components meet rigorous field demands.
Aerospace engineering fights a constant battle against weight. Every ounce matters. Engineers rely on precision formed chassis and brackets to hit strict weight reduction targets. Furthermore, aerospace components endure extreme vibration environments. Replacing welded brackets with single-piece bent structures drastically improves vibration fatigue resistance. Tight tolerances ensure these parts mate perfectly within complex airframe assemblies.
Modern architecture utilizes highly visible structural metal. Load-bearing components, exterior curtain walls, and precise roofing panels require flawless execution. In large architectural projects, a minor tolerance deviation at the bend line multiplies across hundreds of panels. This cumulative tolerance error causes complete assembly failure on the job site. Predictable, repeatable bending ensures uniform gaps and watertight facade integrations.
Medical and electronic devices live inside delicate protective shells. Internal components require exacting EMI (Electromagnetic Interference) shielding. Metal enclosures must feature perfectly overlapping bent flanges to block signal leakage. Additionally, medical housings often require watertight IP-rated seals. If the bending tolerances drift by even a few thousandths of an inch, the rubber gaskets fail to compress evenly. This allows moisture to penetrate and destroy the electronics inside.
You cannot execute tight-tolerance designs without capable manufacturing partners. Many shops claim to offer high precision, but their equipment and protocols tell a different story. You must evaluate vendors critically.
Do not settle for outdated equipment. Look for partners utilizing multi-axis CNC press brakes. These machines should feature active, real-time laser angle measurement systems. As the punch drives the metal into the die, lasers measure the true angle dynamically. The machine adjusts its stroke on the fly to correct springback perfectly. Modern brakes also use dynamic crowning systems to prevent the machine bed from bowing under pressure. This guarantees a perfectly straight bend across long parts.
Address the hidden reality of fabrication. Worn tools destroy good parts. Even the best CNC brake fails if operators use worn V-dies and punches. Degraded tooling creates inconsistent bend radii and unpredictable springback. Ask vendors about their tooling lifecycle management. How often do they inspect their punches? Do they segregate tooling used on carbon steel from tooling used on stainless steel to prevent cross-contamination? A clean, well-maintained tool crib indicates a serious commitment to precision.
A reliable Sheet Metal Fabrication Service must back up its claims with hard data. They must provide First Article Inspection (FAI) reports before running production. Look for facilities that utilize digital CMM (Coordinate Measuring Machine) technology for complex bent geometries. They should supply traceable material certs for every batch. Furthermore, ask about statistical process control (SPC). SPC ensures high-volume repeatability across thousands of parts.
The ideal partner acts as an extension of your engineering team. They do not just blindly cut and bend your files. They perform a comprehensive Design for Manufacturability (DFM) review prior to cutting. They review CAD files for impossible bend radii that would fracture the metal. They check for machine collision risks where a complex part might hit the press brake tooling during a final fold. Most importantly, they analyze grain direction orientation. They nest your flat patterns so that critical bends occur perpendicular to the material grain, maximizing structural strength.
Structural precision is not an accident. It is the direct result of meticulously engineered flat patterns, highly controlled material deformation, and rigorous equipment calibration. By understanding variables like work hardening, K-factor, and springback, you can design parts that replace bulky welded assemblies with sleek, high-strength formed components.
Your next step requires moving beyond theoretical CAD models. Encourage your engineers and procurement teams to collaborate early with capable manufacturers. Submit your 3D CAD files for a comprehensive Design for Manufacturability (DFM) review. Request a preliminary tolerance capability assessment. By bridging the gap between design theory and shop-floor reality, you guarantee a more robust, lightweight, and cost-effective structural component.
A: Standard industry benchmarks typically target ±0.010" to ±0.030" for linear dimensions and ±1° for angles. While modern CNC equipment can achieve tighter tolerances (down to ±0.005" or ±0.5°), specifying ultra-tight precision usually requires specialized tooling, longer setup times, and increased production costs.
A: Thicker materials require larger inside bend radii to prevent surface fracturing. They also require significantly more tonnage to form, which generates higher and more unpredictable springback. This makes tight tolerances much harder to maintain on thick plates without utilizing specialized equipment and active angle measurement technologies.
A: Sheet metal acquires a directional grain structure during the rolling mill process. Bending parallel to this grain increases the risk of micro-cracking and severely weakens structural integrity. Conversely, bending perpendicular to the grain ensures maximum component strength, cleaner radii, and more predictable precision.
